Product Description

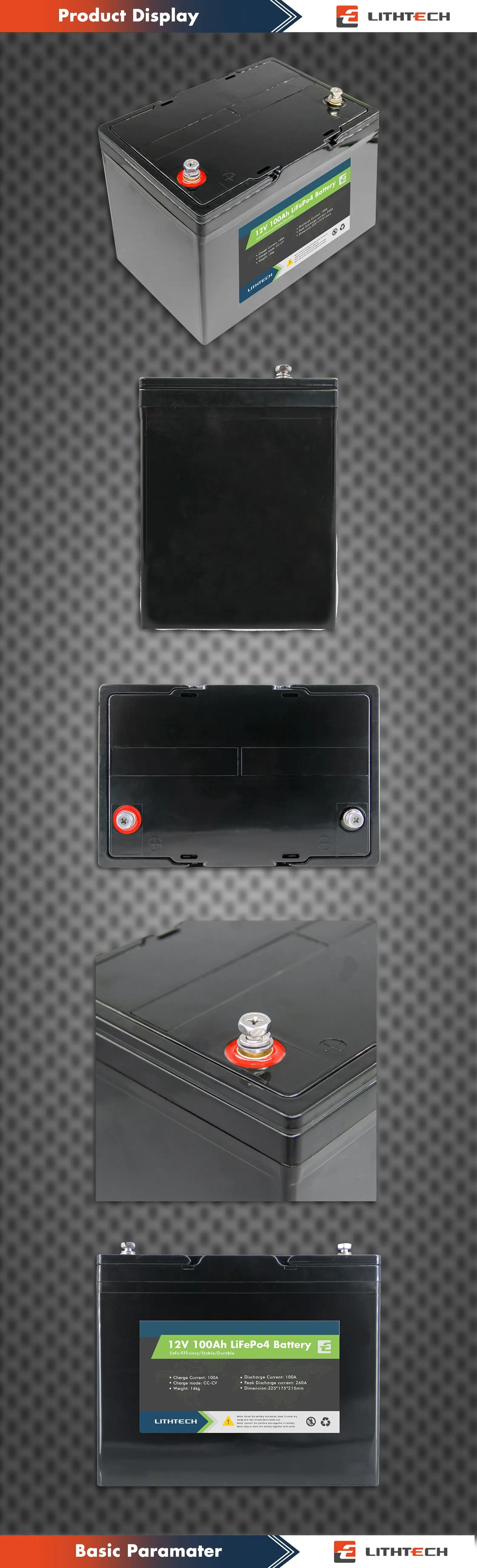

Lifepo4 Battery Pack 12.8v 100ah Lithium Ion Battery
Model | 12.8v 100Ah battery pack with 3.2V 100Ah prismatic lifepo4 cell |
Cell Type | 3.2V100Ah Prismatic Cell |
Voltage | 12.8v |
Capacity | 100Ah |
Standard Charge Current | 20A |
Max Charge Current | 50A |
Constant Discharge Current | 100A |
Peak Discharge Current | 260A(3s) |
Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity |
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
Water Dust Resistance | IP55 |
Housing | IP56 ABS case |
Cycle Life | 5000 times |
Dimensions | 260*168*209mm |
Weight | Approx.11kg |
Terminal | M8 |
